Lt4 SC Pump Block Mount

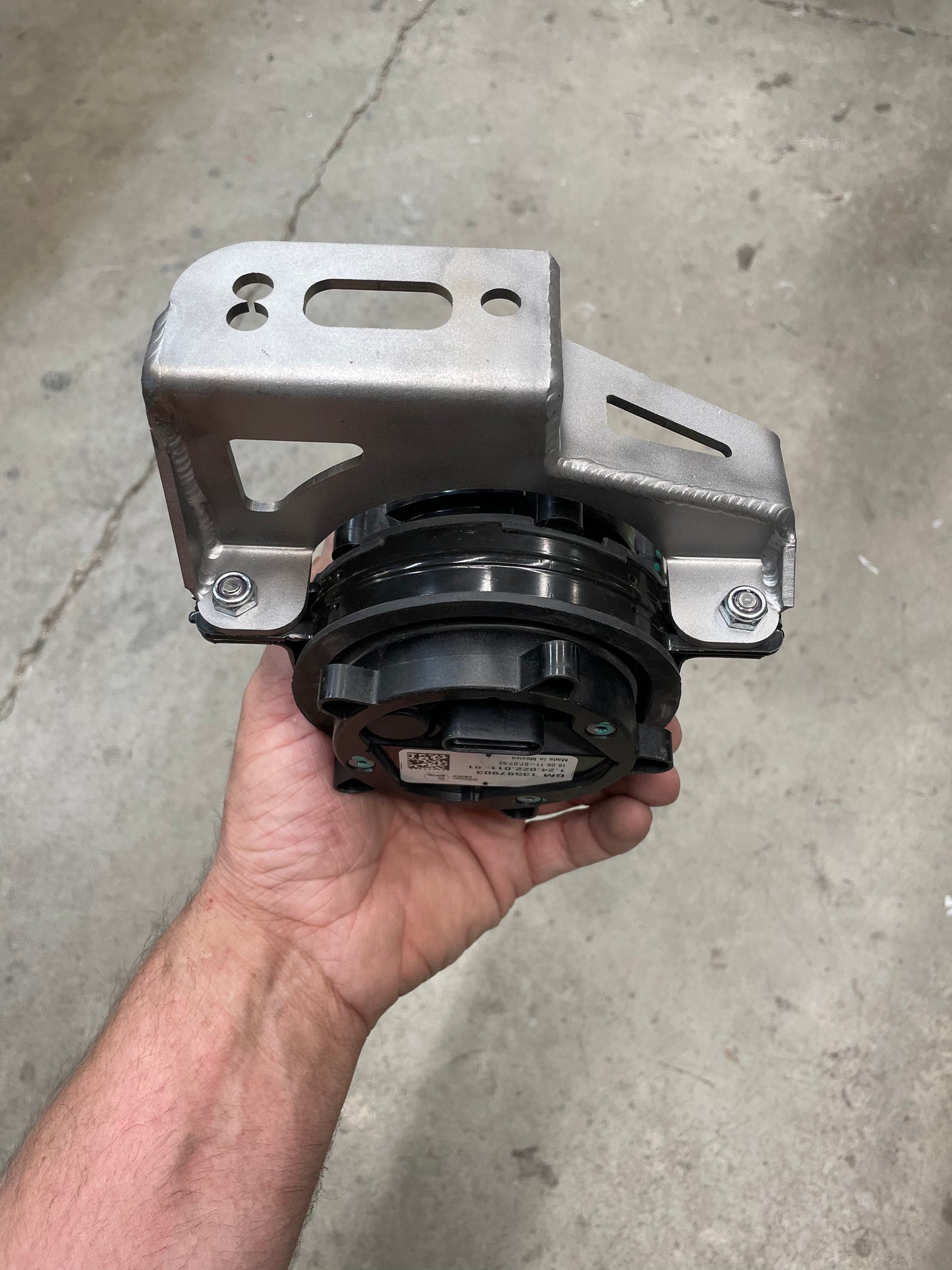

This is a mounting solution for the supercharger water pump supplied with the LT4 crate engine (part# 13597903). With this bracket you can bolt the pump to the engine block on the front drivers side lower position using the two lower threaded holes near the oil pan. Or, if desired you can use the supplied aluminum spacers to mount it 2.25” higher on the top set of threaded holes (see image in gallery). The construction is .125” 4130 chromoly for longevity and it comes fully tig welded. You will need to file one factory clocking tab on the pump’s rh mounting wing about 1/8” for flush bolting.

Approximate placement shown with tape measure in pictures referencing the engine block. Please inquire for precision specs if you believe it will be a tight fit. I’d prefer to help you on the front end then sell you a bracket you can’t use.

Disclaimer, Please read before purchase!

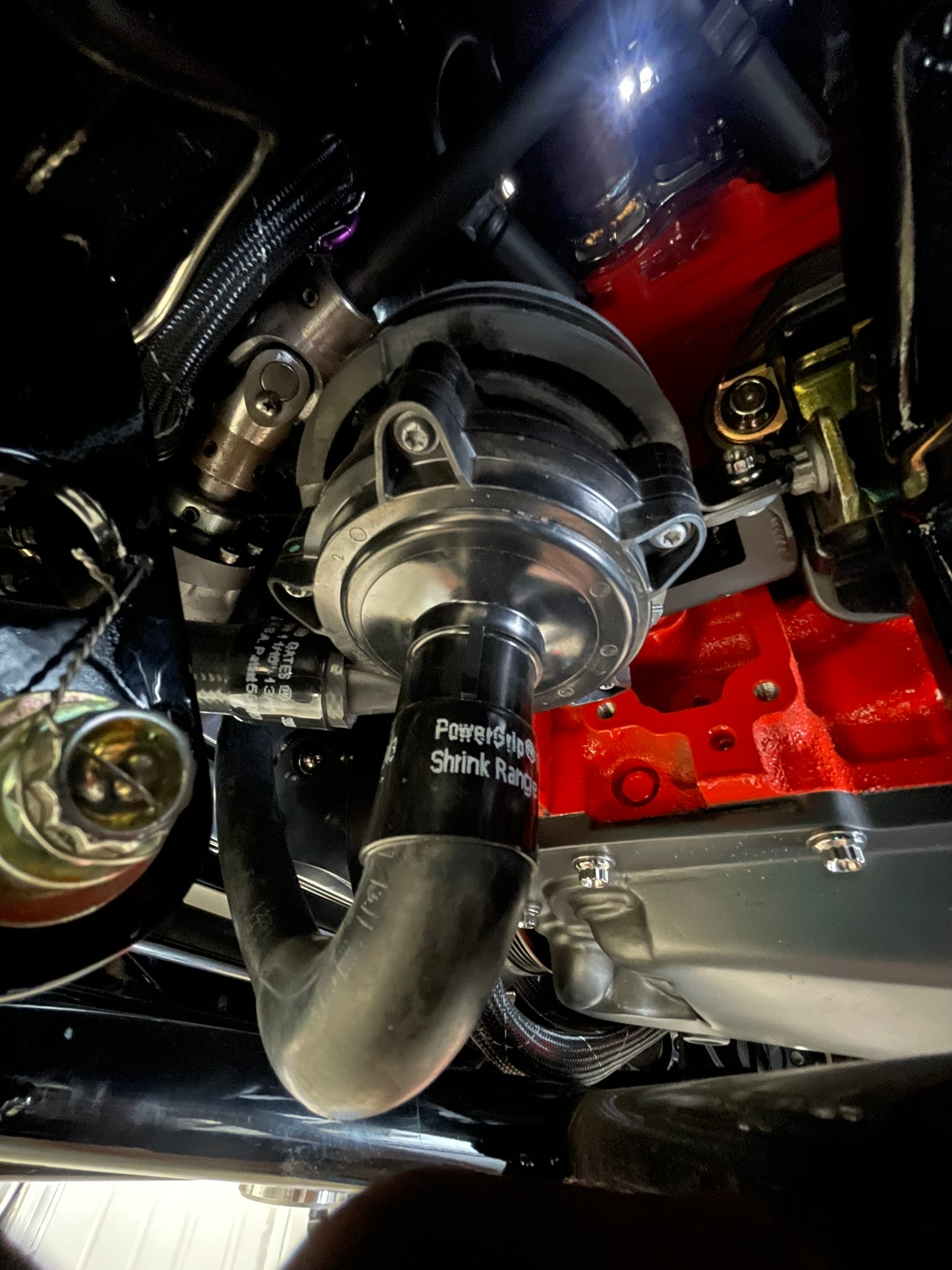

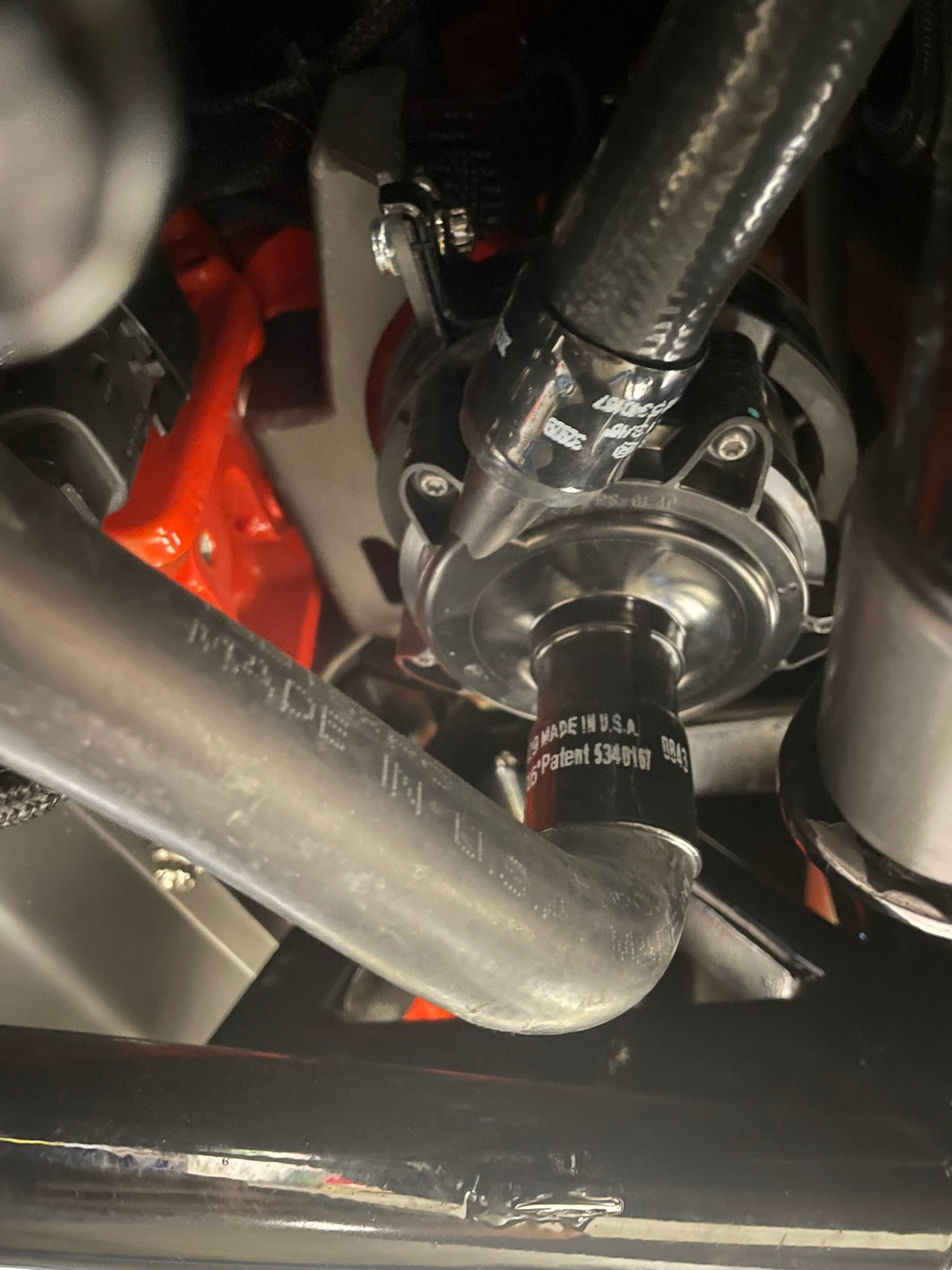

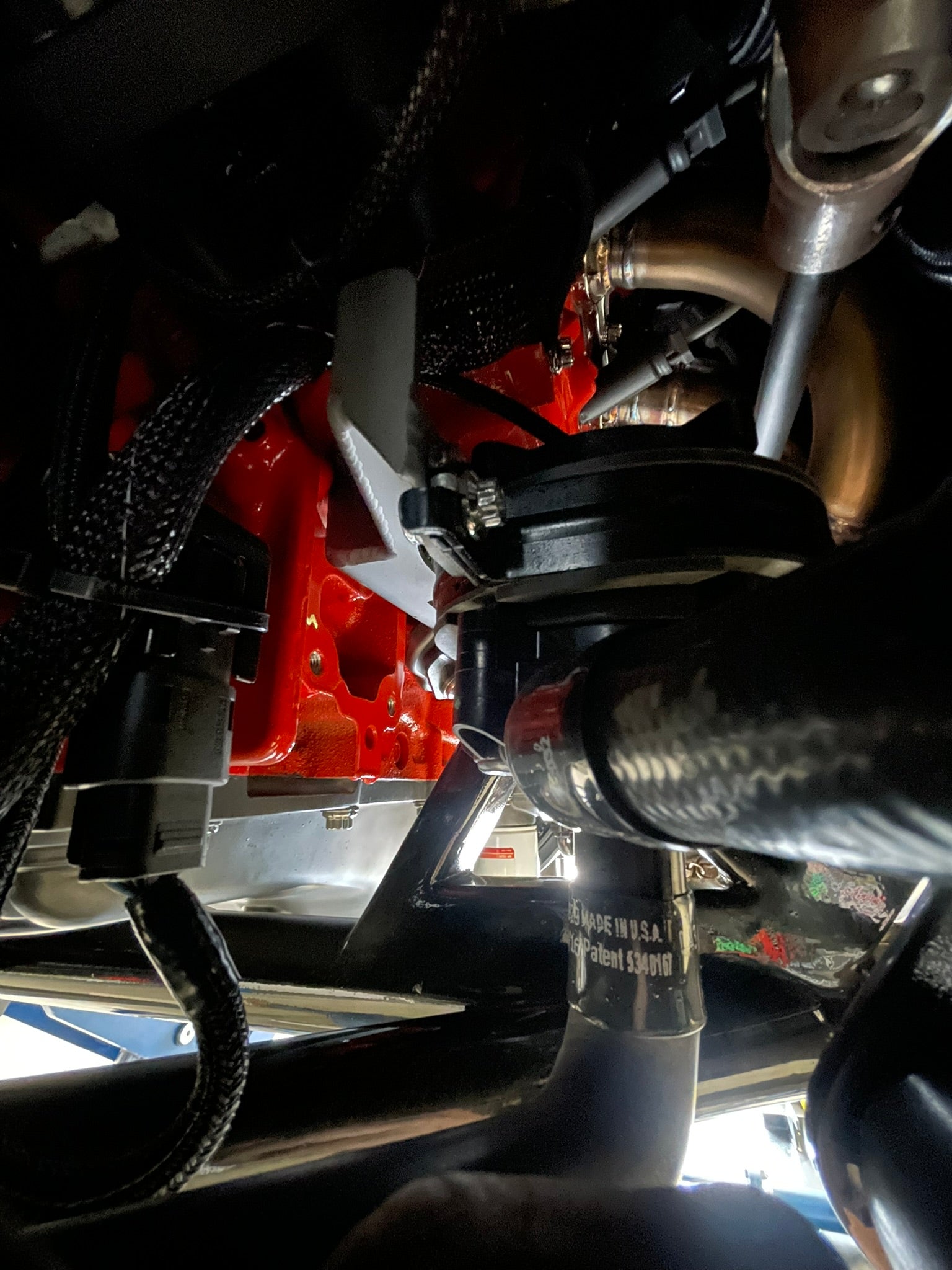

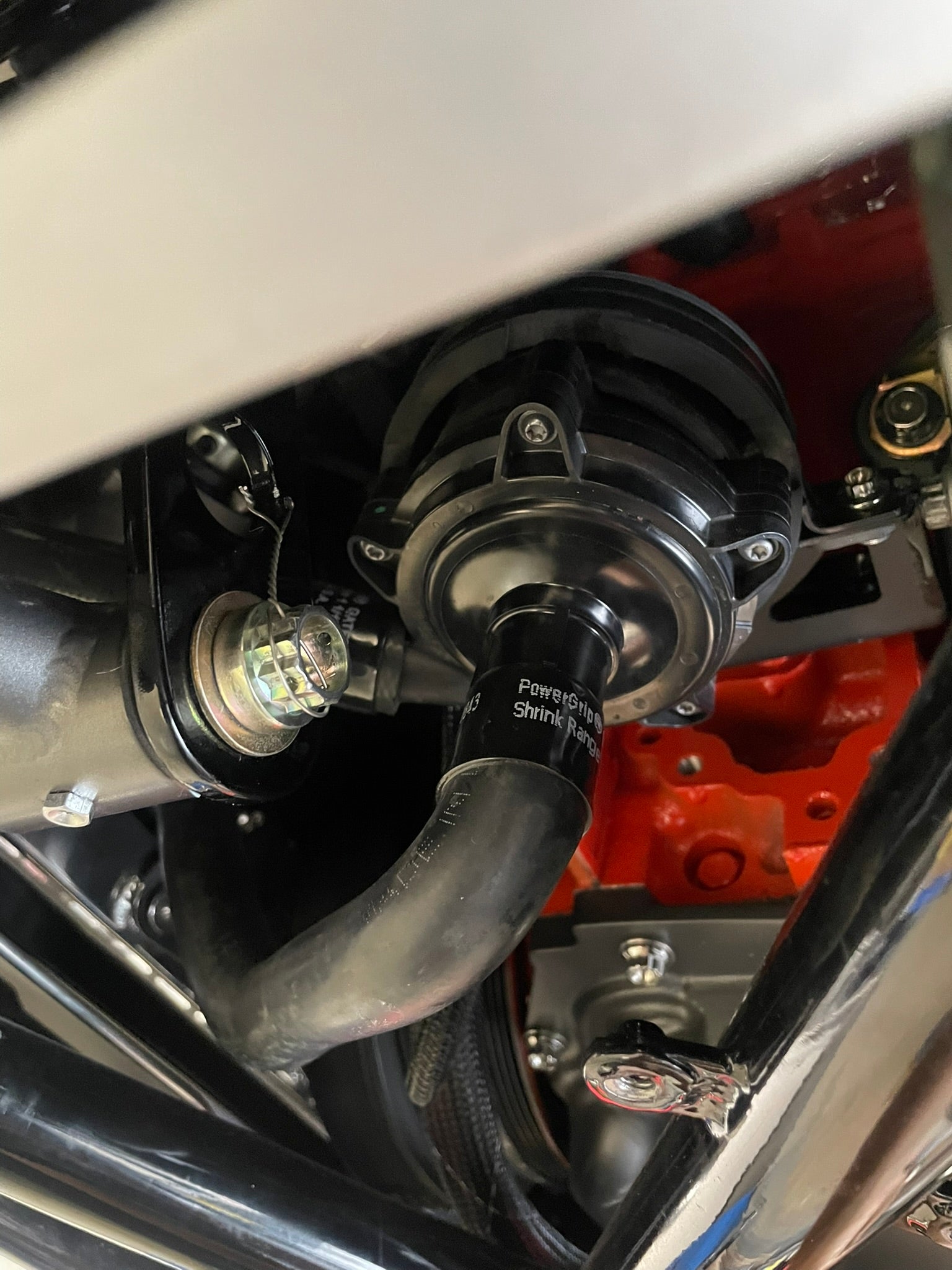

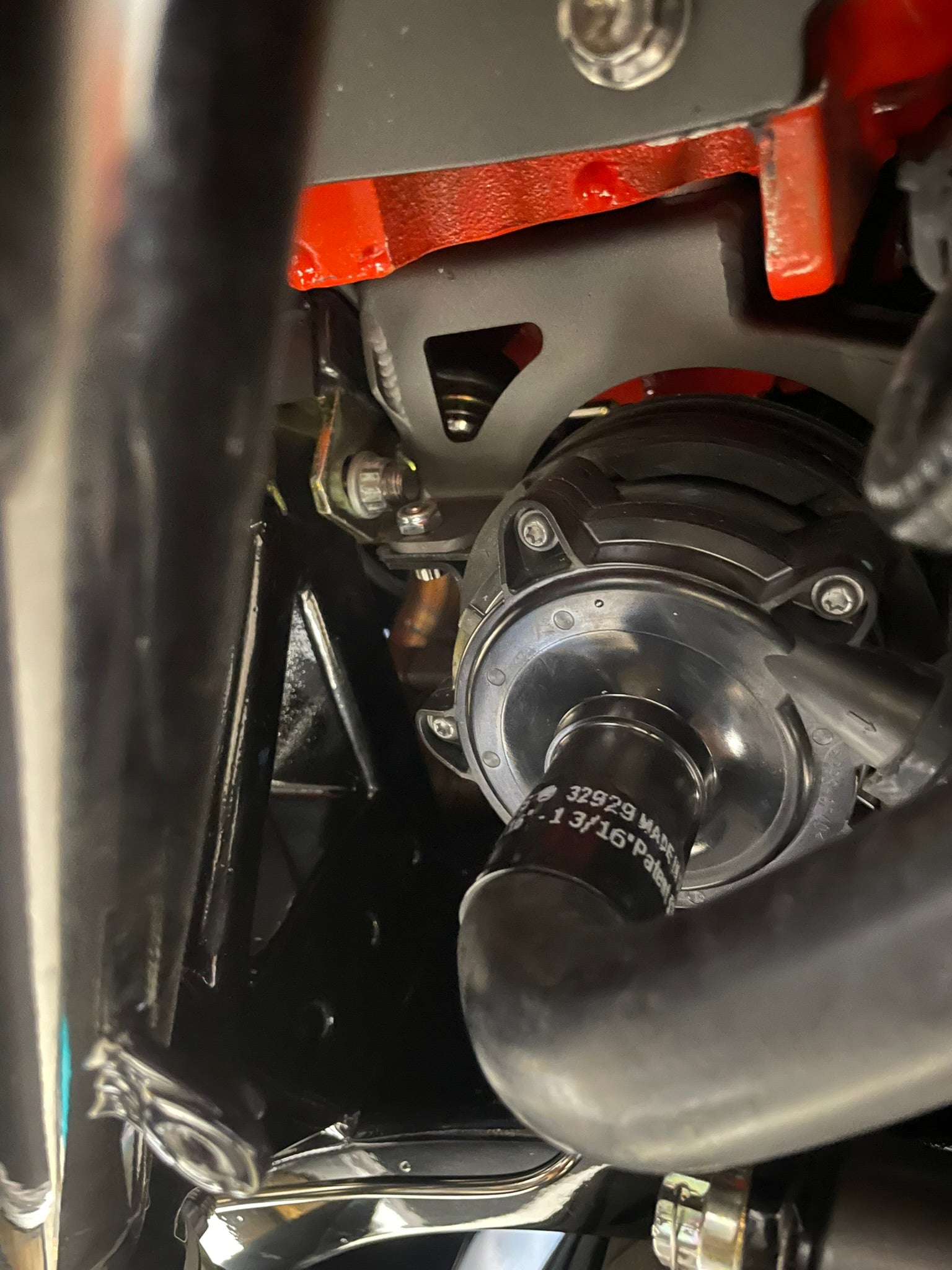

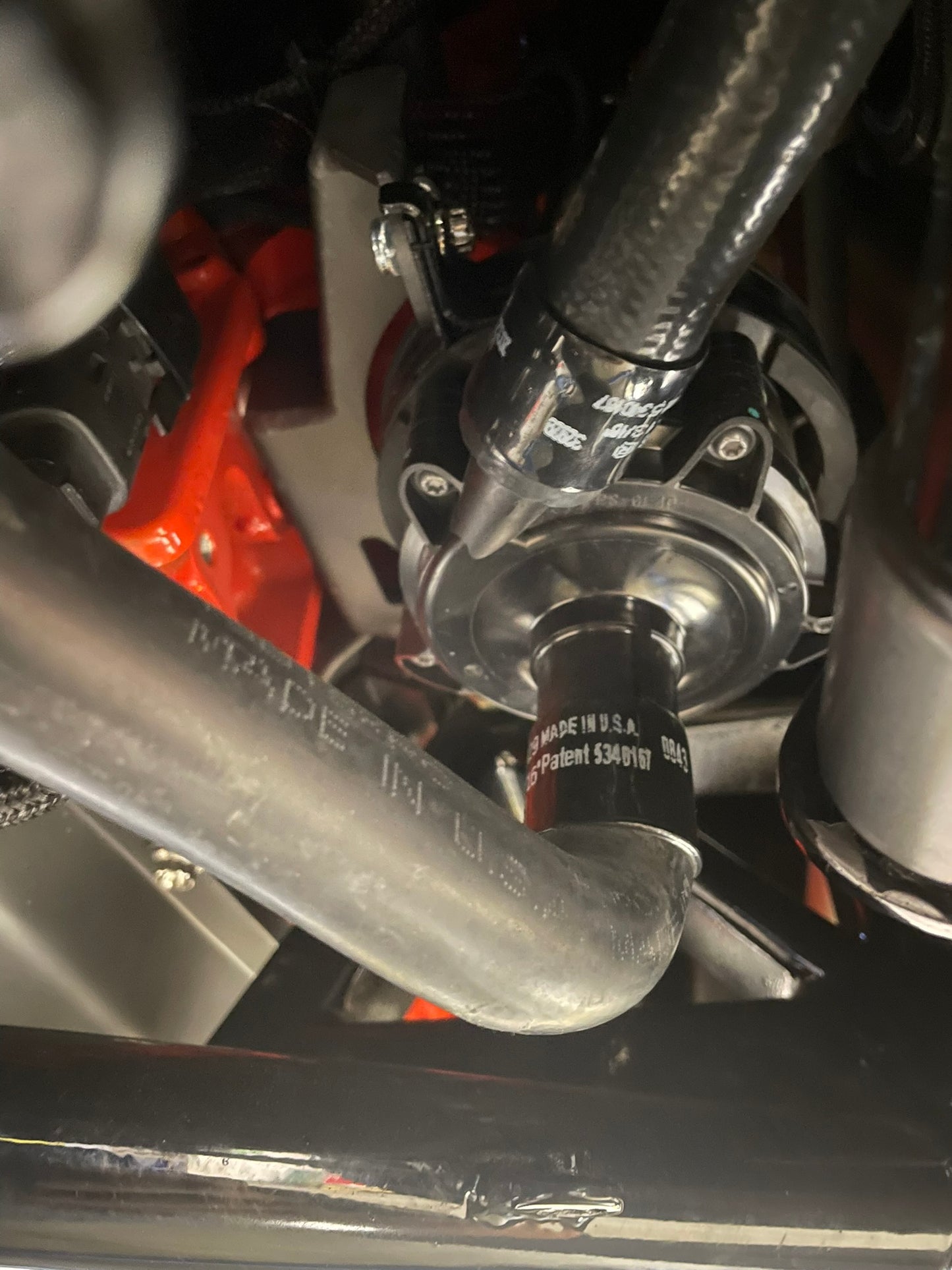

*While Shown in pictures with the inlet (center tube) facing upwards for demonstration this pump is vastly more efficient if you can mount it with the center tube (inlet) down facing the road. The bracket will accommodate either position.

This bracket is meant for custom applications, it is the buyers responsibility to ensure there is adequate space for installation within their chassis. If a return is desired due to chassis interference it is the buyer’s responsibility to cover any return shipping expenses plus a 15% restocking fee. Returns must be filed within 30 days of receiving your order by emailing Kyle.kuhnhausen@gmail.com
